與傳統建筑相比，鋼結構建筑提供了一種創新類型的建筑結構——整個鋼結構建筑。結構主要包括鋼梁柱，桁架以及其他由薄壁鋼板和鋼板制成的零件。它通過焊接，螺栓或鉚釘在零件之間連接。輕巧簡單的結構廣泛用于大型工廠，體育館，超高層建筑和其他領域。
Compared with traditional buildings, Steel Structure Building Construction offers an innovative type of building structure—the entire building made of steel. The structure mainly comprises steel beams, columns, trusses, and other parts made of thin-walled steel and steel plates. It is connected between parts and parts by welding, bolts, or rivets. The lightweight and simple structures are widely used in large factories, stadiums, super high-rise buildings, and other fields.
鋼結構建筑施工為車間，倉庫，農業建筑，車庫建筑和飛機機庫提供價格合理，耐用且維護成本低的解決方案。與木結構相比，鋼可抵抗強風，大雪和白蟻。金屬建筑物的內部布局可以完全定制以滿足您的需求。
Steel Structure Building Construction provides affordable, durable, and low-maintenance solutions for workshops, warehouses, agricultural buildings, garage buildings, and aircraft hangars. Compared to wooden structures, steel is resistant to strong winds, heavy snow, and termites. The interior layout of the metal buildings can be fully customized to meet your needs.
鋼結構建筑物的類型：

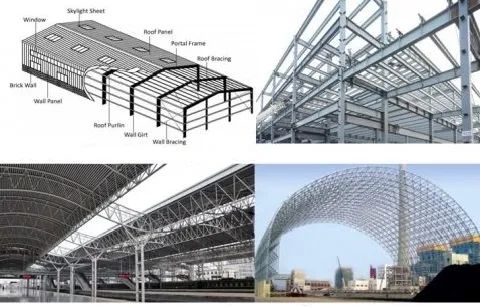

Types of steel structure building:
1.門架式鋼結構建筑。門式鋼框架由熱軋或焊接型鋼，冷彎C / Z鋼和鋼管作為主要的承力組件，并采用輕型屋頂和墻壁結構。門架是輕鋼結構最常見的形式。
1. Portal Frame Steel Building Structures
The portal steel frame comprises a hot-rolled or welded section steel, cold-formed C/Z steel, and steel pipe as the main force-bearing components and adopts a light roof and wall structure. The Portal frame is the most common form of the light steel structure.
2.鋼結構房屋結構
鋼框架結構由可承受垂直和水平載荷的鋼梁和柱組成。圓柱，梁，支撐和其他構件被剛性或鉸接連接以形成靈活的布局并創建更大的空間。它廣泛用于多層，高層和超高層建筑，商業辦公樓，會議中心和其他建筑物。
2. Steel Building Frame Structure
The steel frame structure is composed of steel beams and columns that can withstand vertical and horizontal loads. Columns, beams, bracing, and other members are rigidly or hingedly connected to form a flexible layout and create a larger space. It is widely used in a multi-story, high-rise, and super high-rise buildings, commercial office buildings, conference centers, and other buildings.
3.鋼桁架結構
鋼桁架結構由鉸接在每個桿兩端的幾個桿組成。它可以分為平面桁架和空間桁架。根據零件截面，可分為管式桁架和角鋼桁架。桁架通常由上弦，下弦，垂直桿，對角腹板和桁架間支撐組成。桁架中使用的鋼量少于實心腹板梁，結構重量更輕，剛度更大。
3. Steel Truss Structure
The steel truss structure is made up of several rods hinged at both ends of each rod. It can be divided into plane truss and space truss. According to the parts section, it can be divided into tube truss and angle steel truss. The truss is generally composed of the upper chord, lower chord, vertical rod, diagonal web, and inter-truss support. The amount of steel used in trusses is less than that of solid web beams, the structural weight is lighter, and the rigidity is greater.
4.鋼格柵結構
根據特定規則，網格結構包括許多桿，具有較小的空間應力，輕巧，高剛度和出色的抗震性。它用作體育館，展覽館，飛機機庫。
4. Steel Grid Structure
According to a specific rule, the grid structure comprises many rods, with small space stress, lightweight, high rigidity, and excellent seismic resistance. It is used as a gymnasium, exhibition hall, aircraft hangar.
鋼結構建筑連接：
Steel Structure Building Connection:
常規有三種鋼結構建筑連接：焊接連接，鉚釘連接和螺栓連接。
There are three conventional steel building structure connections: welding connection, rivet connection, and bolt connection.
1.焊接連接
焊接連接是鋼結構的主要連接方法。
根據兩種焊件的相對位置：對接焊，搭接焊，T型接頭和角接頭。
1.Welding Connection
The welded connection is the primary connection method for steel structures.
According to the relative positions of the two weldments: butt weld, overlap weld, T joint, and corner joint.
2.螺栓連接
螺栓連接分為普通螺栓和高強度螺栓。
普通螺栓用于臨時連接和可移動靜載荷結構的連接。高強度摩擦螺栓廣泛用于工業，民用建筑鋼結構連接。它們是承受各種鏈接之間動態載荷的最合適的連接方法。
2.Bolt Connection
Bolt connection is divided into ordinary bolts and high-strength bolts.
Ordinary bolts are for temporary connection and the connection of removable static load structures.
High-strength friction bolts are currently widely used in industrial, civil construction steel structure connections. They are the most suitable connection method for bearing dynamic loads among various links.
3.鉚釘連接
鉚釘是一種由頭部和釘桿組成的緊件。它主要通過其變形產生的摩擦來完成連接工作。具體的連接方法包括冷鉚和熱鉚。
3.Rivet Connection
A rivet is a type of tight member composed of a head and a nail rod. It mainly completes the connection work by the friction generated by its deformation. The specific connection methods include cold riveting and hot riveting.
全部鋼結構建筑物組件在工廠設計和制造，嚴格按照制造圖紙進行切割，焊接和鉆孔，以確保結構公差小于2mm。與傳統的混凝土建筑相比，金屬結構建筑的安裝更容易，更快捷，可以節省安裝期間的建設和人工成本。
All steel structure buildings components are designed and manufactured in the factory, cut, welded, and drilled strictly following the manufacturing drawings to ensure that the structure tolerance is less than 2mm. Compared with traditional concrete buildings, the installation of metal structure building is easier and faster to complete. After installation, the owner can save on construction and labor costs during installation.
